Key Features
Panflex technology and L-Vents bass-reflex with DOSC waveguide in the A10 Focus loudspeaker offer adjustable dispersion patterns and directivity options, creating an enveloping, consistent sound field ideal for live sound setups.

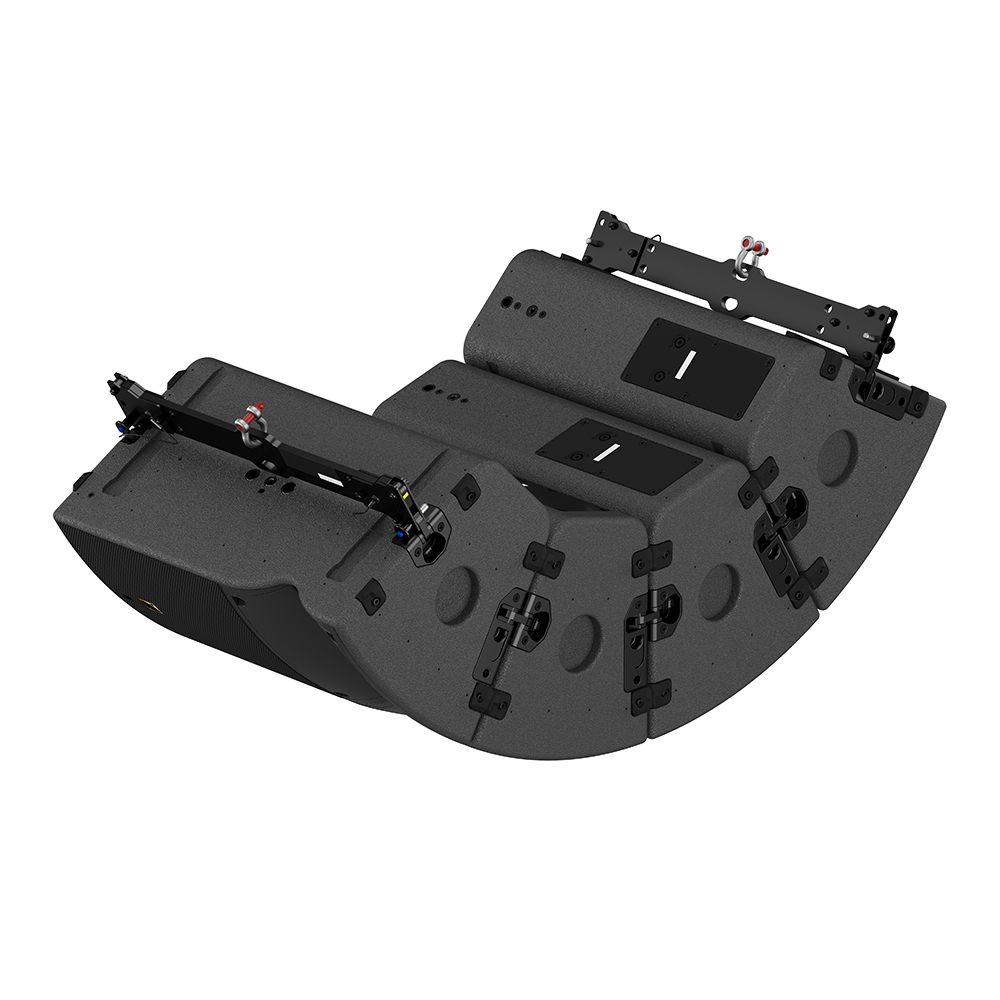

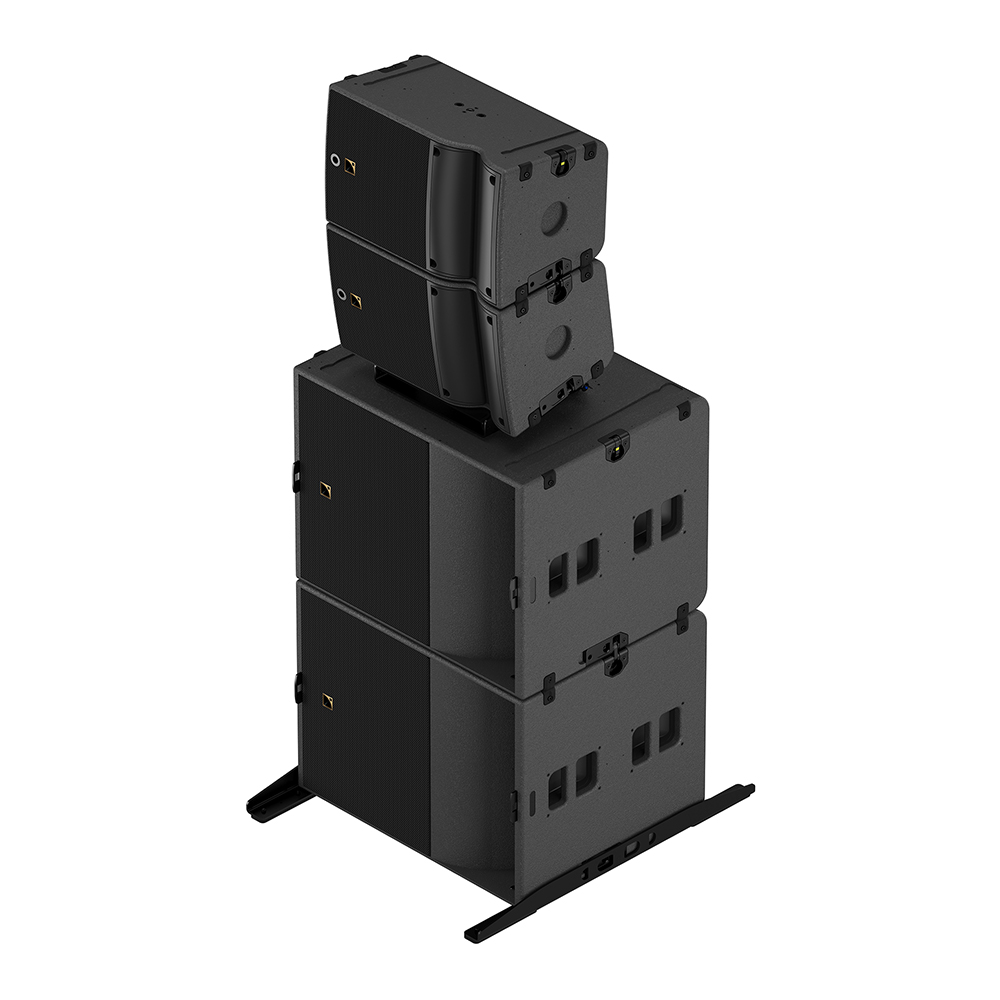

Modular boxes allow you to scale your system to meet the size of your event or project. A flush-fitting two-point rigging system is available for easy setup in diverse venues.
A10 Focus is ideal for any professional audio system with 10" cone and 2.5" diaphragm drivers for full-spectrum sound. Achieve a usable bandwidth of 66 Hz – 20 kHz, ready to tackle any application.
A maximum SPL of 140 dB ensures a concert-level experience. Perfect for live sound events requiring powerful output.
Product Specifications
2-way passive constant curvature WST 10°,
amplified by LA4X / LA8 / LA12X
66 Hz - 20 kHz ([A10])
140 dB ([A10])
Enclosure: 10°
Panflex: 70° / 110° symmetric or 90° asymmetric
LF: 1 × 10’’ neodymium cone driver
HF: 1 × 2.5’’ diaphragm neodymium compression driver
LF: Bass-reflex, L-Vents
HF: DOSC waveguide, Panflex
8 Ω
Flush-fitting two-point rigging system
1 handle, 8 corner stops and 2 ground runners
1 DIN580-compatible M8 insert
22 kg / 49 lb
Premium grade Baltic beech and birch plywood
Coated steel grill
Acoustically neutral 3D fabric
Coated steel grill
Acoustically neutral 3D fabric
Dark grey brown Pantone 426 C
IP55
