Key Features
POWERFUL: Up to 20.000 people without sacrificing power
LIGHT: High performance to weight ratio with enclosure thickness optimization process
ADJUSTABLE: 4 horizontal directivities with PANFLEX™
SHARP: Clear low-frequency power with L-VENTS™
RUGGED: Built for the road and effortless rigging system
Product Specifications
Description
3-way active WST enclosure,
quad-amplified by LA4X/LA8/LA12X
Usable bandwidth (-10 dB)
35 Hz - 20 kHz ([K2_70])
Maximum SPL
147 dB ([K2_70])
Nominal directivity
Vertical : depending on number of elements and array curvature
Horizontal : 70°/110° symmetric or 90° asymmetric
Transducers
LF: 2 × 12’’ cone drivers
MF: 4 x 6,5’’ cone drivers
HF: 2 × 2’’ diaphragm compression drivers
Acoustical load
LF: Bass-reflex, L-Vents
MF: Bass-reflex
HF: DOSC waveguide, Panflex
Nominal impedance
LF/MF/HF : 2 x 8 Ω / 8 Ω / 16 Ω
Connectors
2 × 8-point PA-COM®

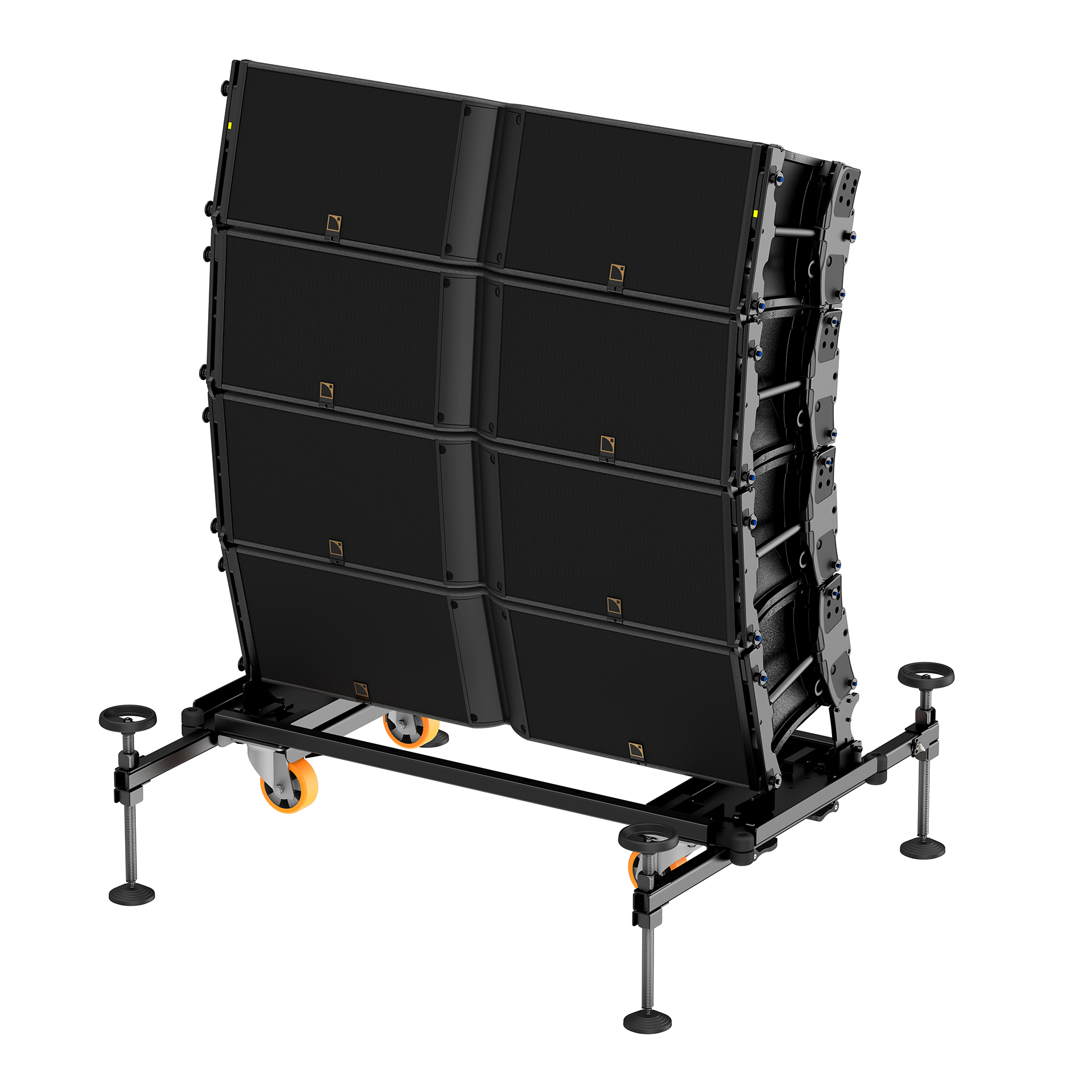

Rigging and handling
4-point captive rigging system
2 large side handles
Inter-enclosure angles [deg]: 0.25, 1, 2, 3, 4, 5, 7.5, 10
Weight (net)
56 kg/123.2 lb
Cabinet
Premium grade Baltic birch plywood
Side panels
Die cast aluminum
Front
Coated steel grill
Acoustically neutral 3D fabric
Rigging components
High grade steel with anti-corrosion coating
Finish
Dark grey brown Pantone® 426 C
