Key Features
EFFICIENT: Best-in-class SPL per weight and footprint
ADJUSTABLE: 4 horizontal directivities with PANFLEX™
SHARP: Clear low-frequency power with L-VENTS™
SLEEK: Designed to melt into any venue decor
Product Specifications
Description
2-way active WST enclosure
amplified by LA2Xi / LA4X / LA8 / LA12X
Usable bandwidth (-10 dB)
55 Hz - 20 kHz ([KARA II 70])
Maximum SPL
142 dB ([KARA II 70])
Nominal directivity (-6 dB)
Vertical : depending on number of elements and array curvature
Horizontal : 70° / 110° symmetric or 90° asymmetric
Transducers
LF: 2 × 8’’ neodymium cone driver
HF: 1 × 3’’ neodymium diaphragm compression driver
Acoustical load
LF: Bass-reflex
HF: DOSC waveguide, Panflex
Nominal impedance
LF: 8 Ω
HF: 8 Ω
Rigging and handling
External rigging kits
M6 inserts for rigging plates and accessories
Inter-enclosure angles [deg]: 0, 1, 2, 3, 4, 5, 7.5, 10
Weight (net)
21 kg / 46 lb
Cabinet
Premium grade Baltic birch plywood
Front
Coated steel grill
Acoustically neutral 3D fabric
Rigging components
High grade steel with anti-corrosion coating
Finish
Dark grey brown Pantone 426 C

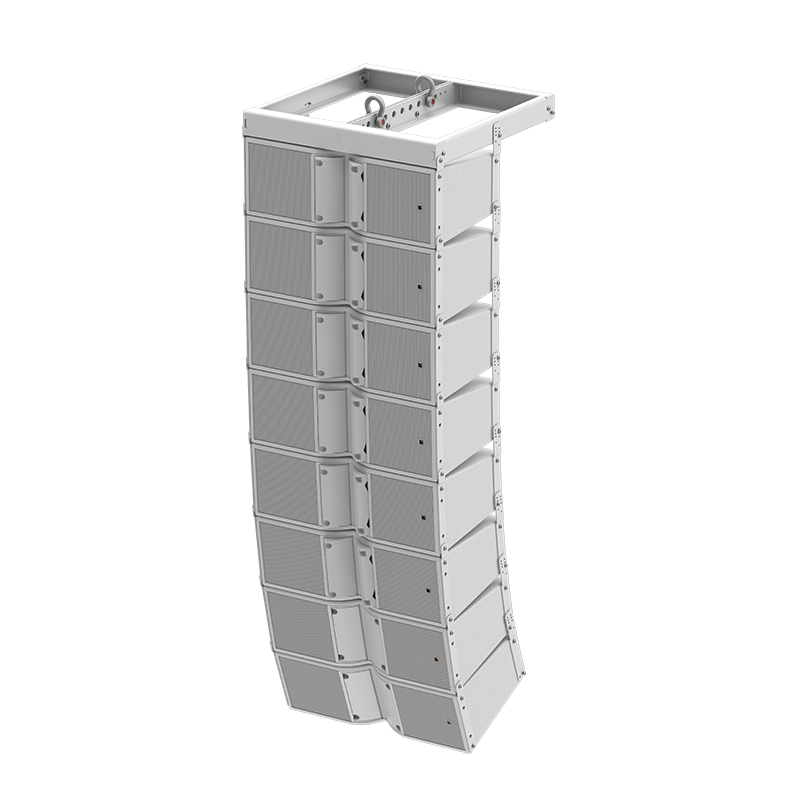

Pure white RAL 9010
Custom RAL code on special order
IP
IP55
