Key Features
LIGHT: Flown even under the most stringent rigging conditions
COMPACT: Minimalist dimensions for easy integration
PRECISE: Clear vocals and smooth horizontal polar pattern with L-FINS
DENSITY: 16 ohms for maximized enclosure density per amplified controller
Product Specifications
Description

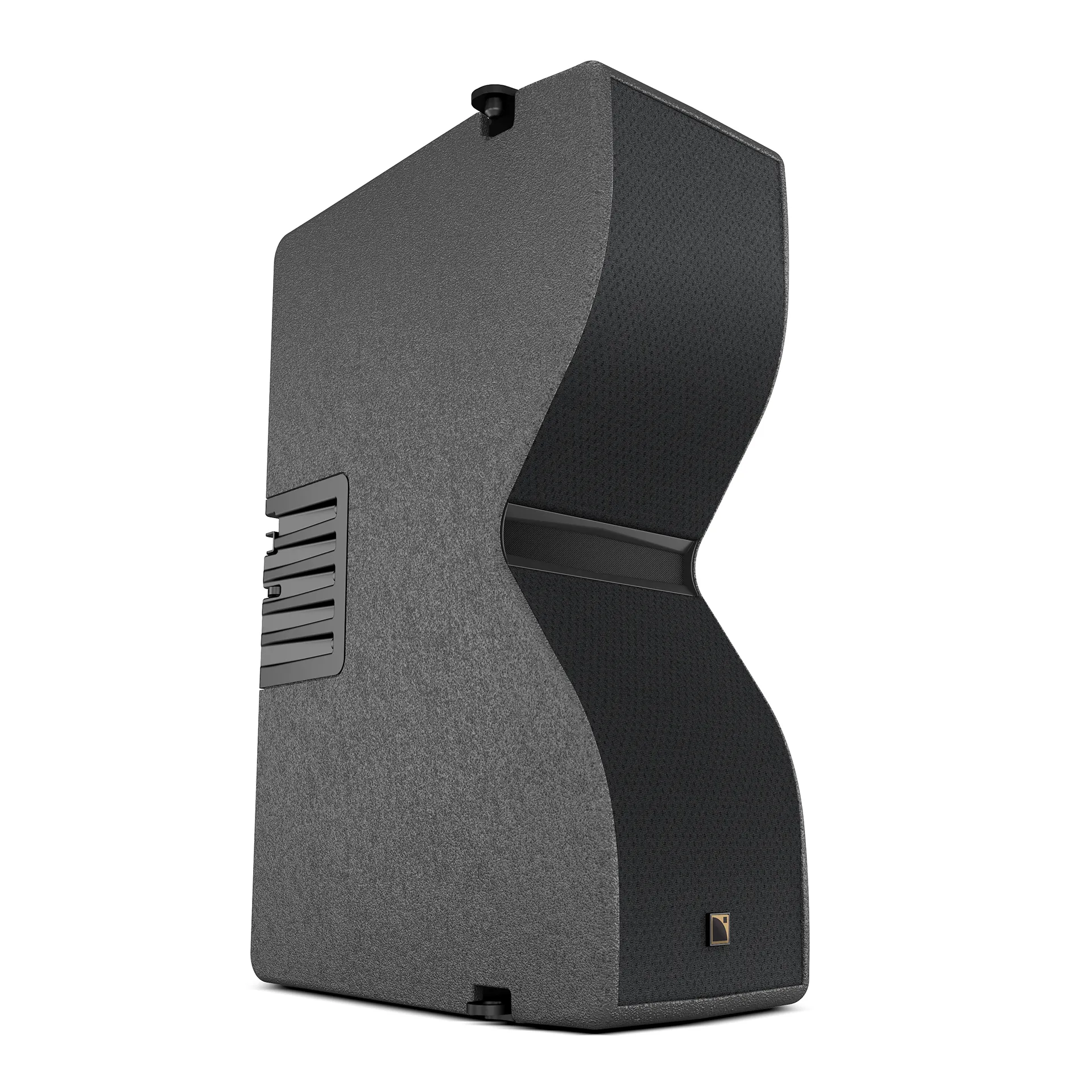

Passive 2-way WST enclosure amplified by LA4X / LA8 / LA12X
Usable bandwidth (-10 dB)
70 Hz - 20 kHz ([KIVA II])
Maximum SPL
138 dB ([KIVA II])
Nominal directivity
Horizontal: 100°
Vertical: depending on the number of elements and array curvature
Transducers
LF: 2 x 6.5’’ neodymium
HF: 1 x 1.75’’ neodymium compression driver
Acoustical load
LF: Bass-reflex enclosure
HF: DOSC waveguide and L-Fins
Nominal impedance
16 Ω
Connectors
IN: 1 x 4-point speakON®
LINK: 1 x 4-point speakON®
Rigging and handling
Flush fitting 3-point rigging system
Inter-enclosure angles [deg]: 0, 1, 2, 3, 4, 5, 7.5, 10, 12.5, 15
2 handles
Weight (net)
14 kg / 31 lbs
Cabinet
Composite sandwich structure
Cabinet
Composite sandwich structure
Front
Composite grill with anti-corrosion coating
Acoustically neutral 3D fabric
Rigging components
High grade steel
Finish
Dark grey brown PANTONE® 426C
Pure white RAL 9010
Custom RAL CLASSIC code on special order
IP
IP 55
