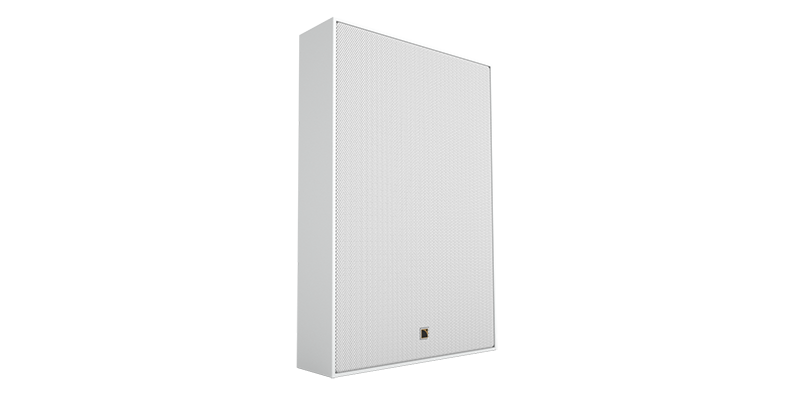

Ultra-shallow subwoofer: 2 × 6,5’’
amplified by LA7.16i / LA2Xi / LA4X / LA12X

Preset [SB6_60]: 29 Hz
Preset [SB6_100]: 29 Hz
Preset [SB6_200]: 32 Hz

Preset [SB6_60]: 112 dB
Preset [SB6_100]: 113 dB
Preset [SB6_200]: 117 dB

Peak level at 1 m under half space conditions using pink noise with crest factor 4 (preset specified in brackets).
For Max SPL values using LA2Xi, refer to LA2Xi system specification sheet

Standard

2 × 6.5’’ neoymium cone driver

Bass-reflex, L-Vents

4 Ω

4-point terminal block with push-in connection and connector sealing plate

8 x M6 inserts for on-wall and on-ceiling accessories and safety
inWall, inCeiling, inTiles versions available

9 kg / 20 lb

Premium grade Baltic beech and birch plywood

Coated steel grill
Acoustically neutral 3D fabric

Dark grey brown Pantone 426 C
Pure white RAL 9010
Custom RAL code on special order

IP55
