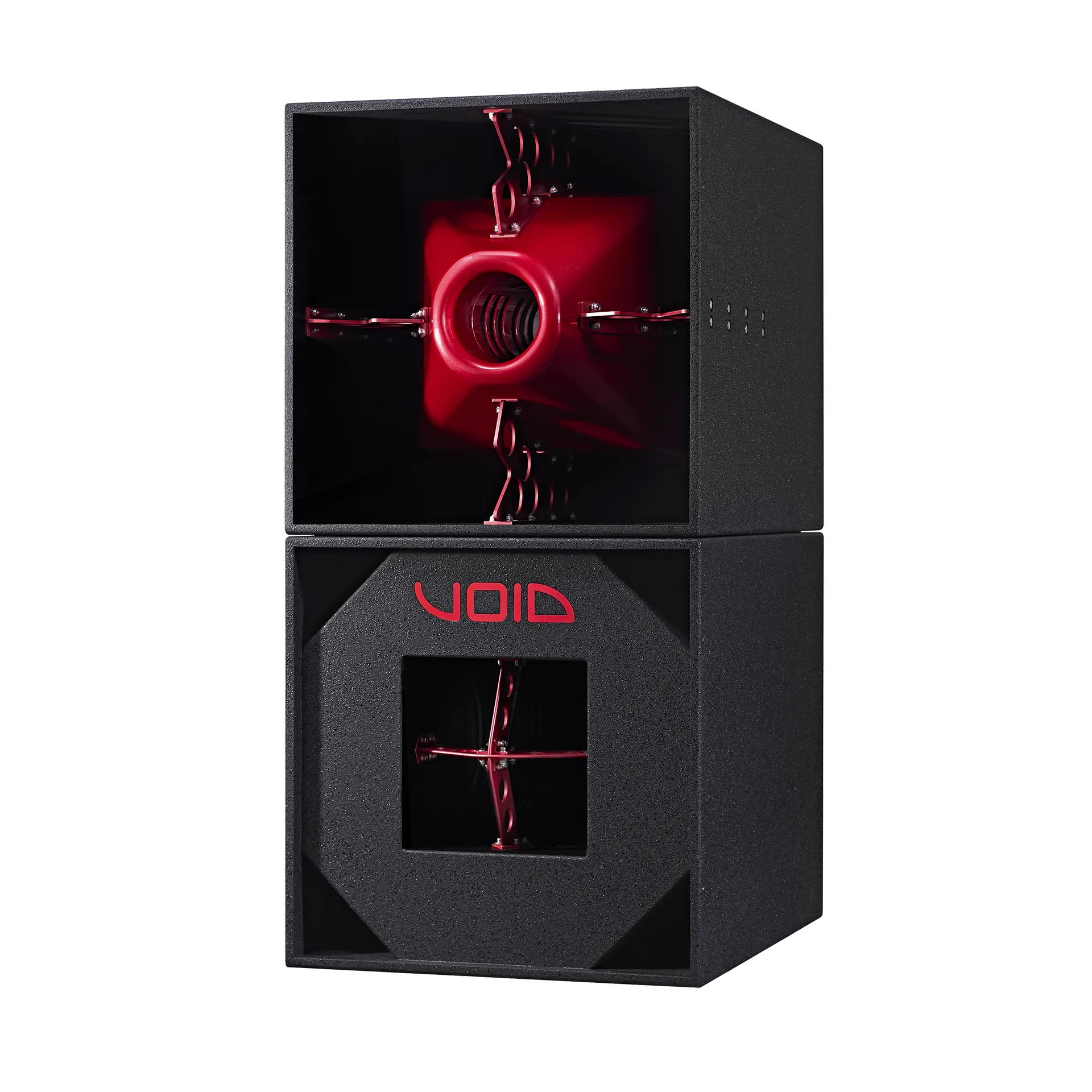

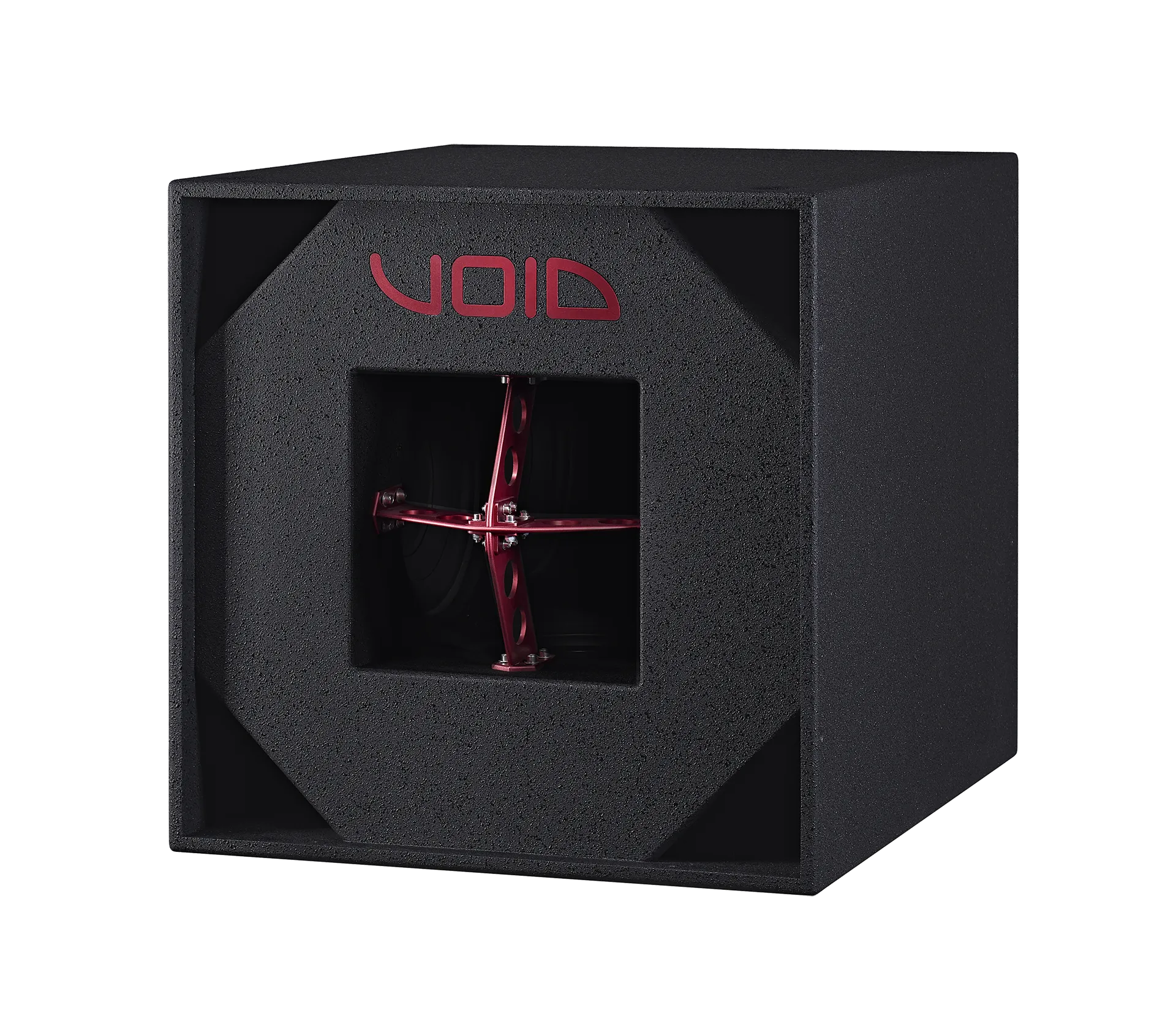

Nexus Q
Impeccable fidelity, streamlined styling
Sophisticated finish, complimented by strategic design
Key Features
Four high power 12” transducers
Front loaded horn
High efficiency
Newly developed ‘pressure gradient’ arrangement
Unparalleled Upped Bass
The Nexus Q delivers unparalleled upper bass frequencies via its enhanced enclosure design. Four 12" transducers use a front-loaded horn to achieve high efficiency and a rear port with a newly developed ‘pressure gradient’ arrangement.
Unbeatable Definition
The Improved configuration results in an enclosure with unmatched output and definition, alongside elimination of any colouration from turbulent or mechanical port noise. The Nexus Q is well-suited to high-impact nightclubs, concerts and festivals.
Product Specifications
Frequency Response
60 Hz - 150 Hz ±3dB
Efficiency
110 dB 1W/1m (Measured in half space)
Crossover Points
70 Hz
Nominal Impedance
2 x4 Ω
Power Handling
2 x 2000 W AES (AES2 - 1984 compliant)
Maximum Output
145 dB cont, 151 dB peak (Calculated)
Driver Configuration
4 x 12”
Dispersion
Array dependant
Connectors
2 x 4-pole SpeakON™
Weight
130 kg (286.6 lbs)
