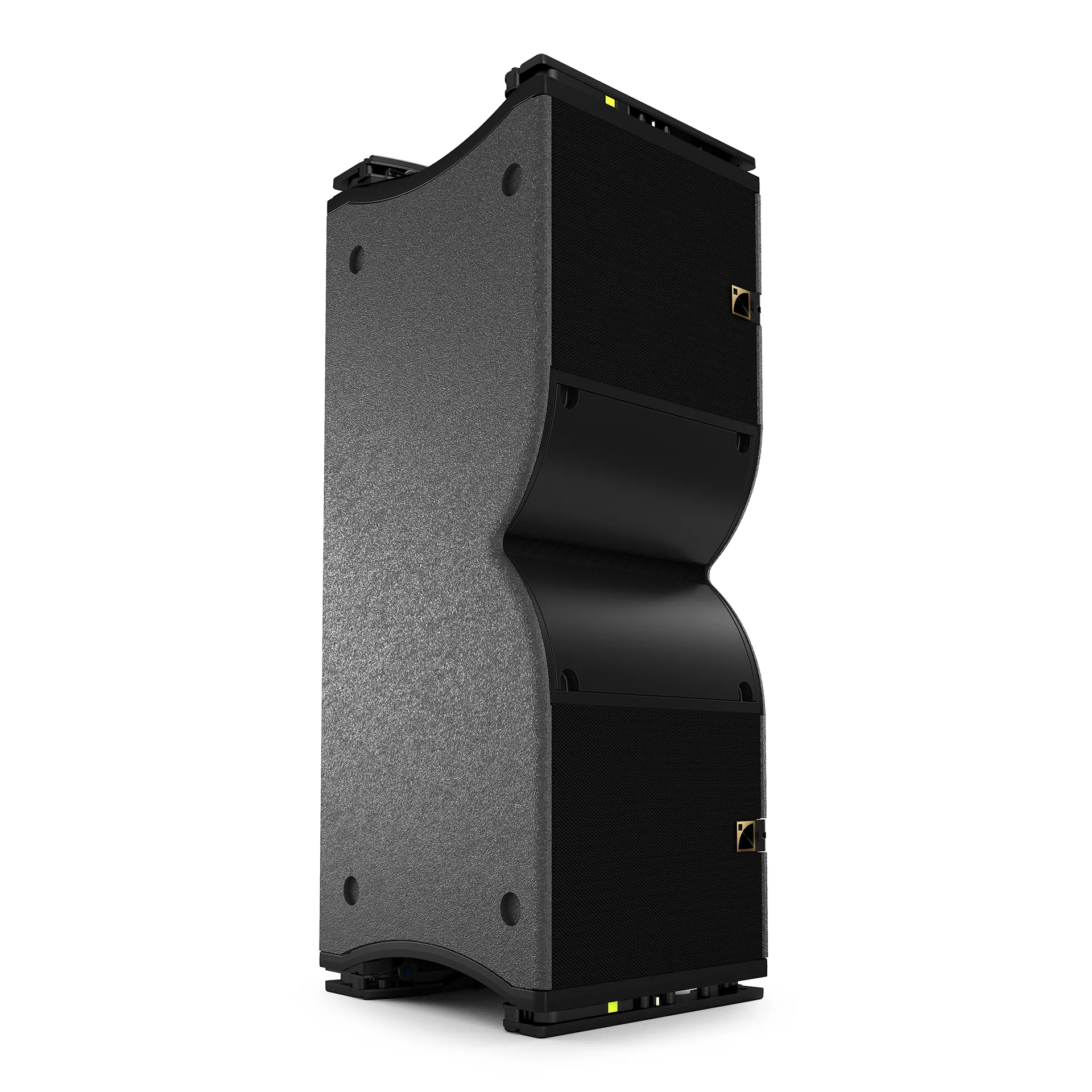

K3
2-way active, dual 12"
Full-range. Compact. No compromises.
Key Features
POWERFULLY COMPACT: Large-format system performance in a compact size
ADJUSTABLE: 4 horizontal directivities with PANFLEX™
SHARP: Clear low-frequency power with L-VENTS™
RUGGED: Built for the road and effortless rigging system
Product Specifications
Description
2-way active WST enclosure,
amplified by LA4X/LA8/LA12X
Usable bandwidth (-10 dB)
42 Hz - 20 kHz ([K3_70])
Maximum SPL
143 dB ([K3_70])
Nominal directivity
Vertical : depending on number of elements and array curvature
Horizontal : 70°/110° symmetric or 90° asymmetric
Transducers
LF: 2 × 12’’ neodymium cone driver
HF: 1 × 4’’ diaphragm neodymium compression driver
Acoustical load
LF: Bass-reflex, L-Vents
HF: DOSC waveguide, Panflex
Nominal impedance
LF/HF : 8 Ω/8 Ω
Connectors
2 × 4-point speakON
Rigging and handling
4-point captive rigging system
2 large side handles
Inter-enclosure angles [deg]: 0.25, 1, 2, 3, 4, 5, 7.5, 10
Weight (net)
43 kg/94.7 lb
Cabinet
Premium grade Baltic birch plywood
Side panels
Die cast aluminum
Front
Coated steel grill
Acoustically neutral 3D fabric
Rigging components
High grade steel with anti-corrosion coating
Finish
Dark grey brown Pantone 426 C
IP
IP55
